MOTOR DL ENGINE 85CC GAS DLE85

Ref: 137546
Estoque: Indisponível
R$ 5.527,42
Comprar

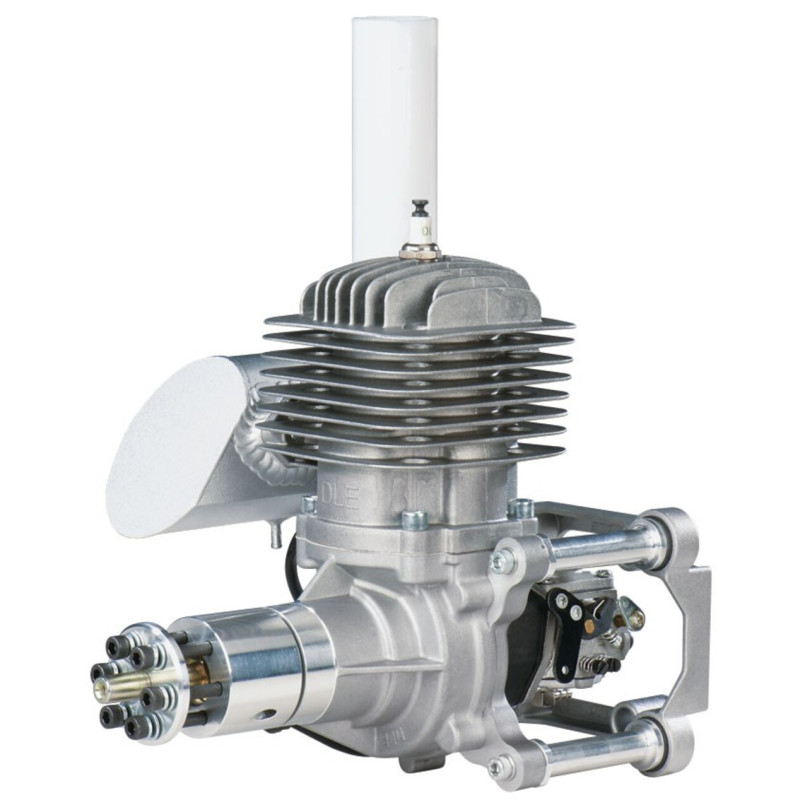

	This is the DLE-85 Gasoline Engine with Electronic Ignition.















				FEATURES

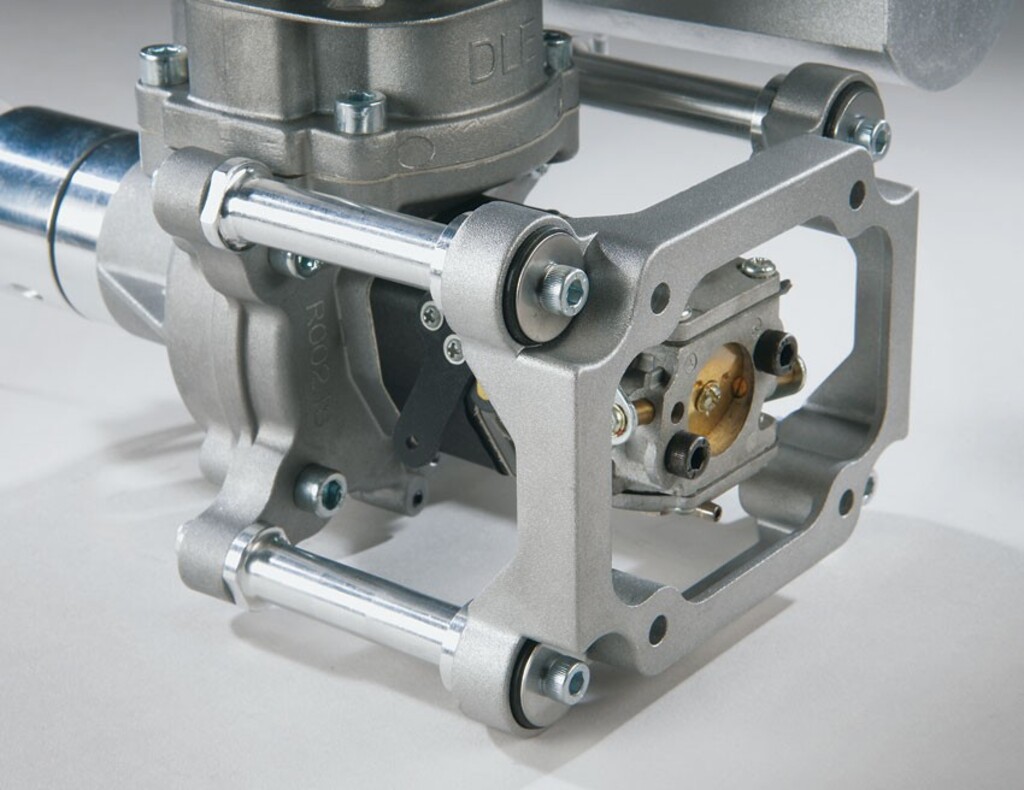

	Engine mount specifically designed to dampen vibration

	Exhaust extension on the included muffler aids in installation and

	helps protect the engine and muffler in the event of a hard

	landing

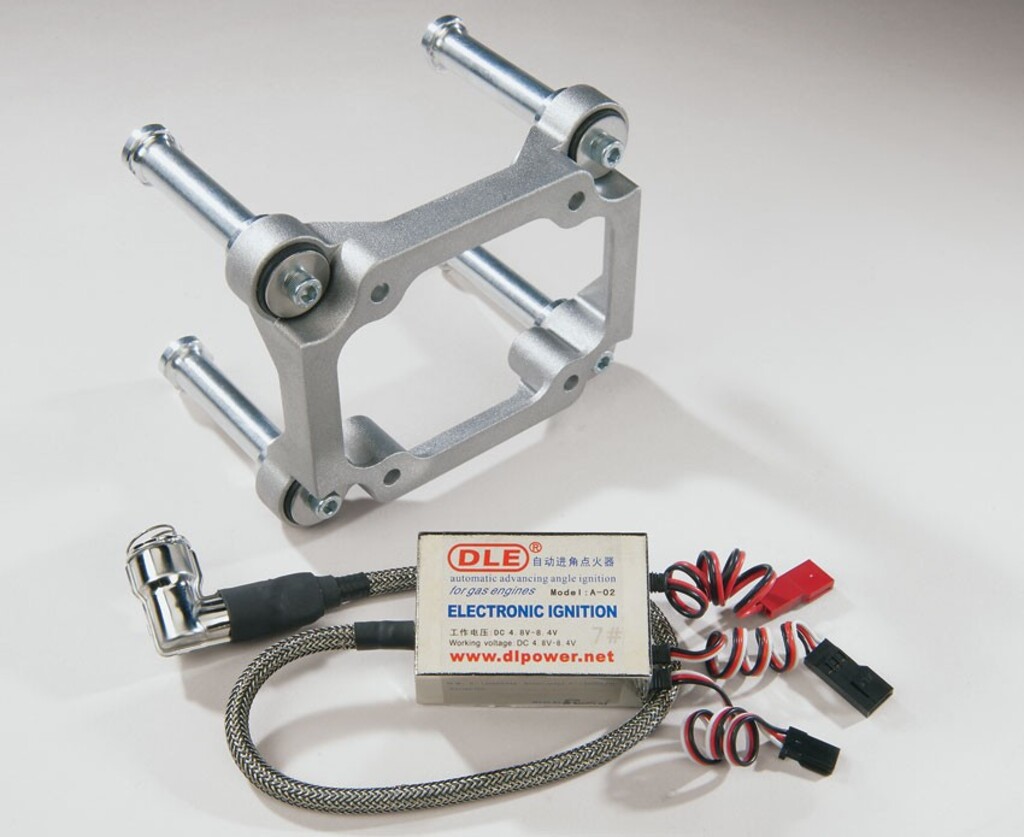

	Ignition module will accept the optional DLE tachometer (DLEG5525)











				INCLUDES







	DLE-85 Engine with Ignition Module, Spark Plug, Engine Standoffs,

	Engine Mount, Muffler w/Exhaust Extension, Fiber Muffler Gasket

	and Manual











				REQUIREMENTS







	Unleaded gasoline

	Two-stroke oil

	4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition

	(separate receiver style pack can be used) (LiPo & LiFe requires

	voltage regulator)

	Propeller











				SPECIFICATIONS







	Displacement: 84.88cc (5.18 cu in)

	Bore: 2.047in (52mm)

	Stroke: 1.574in (40mm)

	Total weight: 5.09lb (2.31kg)

	Engine: 68oz (1930g)

	Exhaust: 8.8oz (250g)

	Ignition module: 4.58oz (130g)

	Output: 8.5hp @ 7500 rpm

	Compression ratio: 9.5:1

	Gasoline/Oil Mix: 30:1

	Suggested props: 25x10, 26x9, 27x8

	Height, Crankshaft Center/top of Cylinder Head: 5.5" (140mm)

	Length, Prop Washer to end of Mount: 7.9" (200mm)

	Center of Vertical Mounting Holes: 2.9" (75mm)

	Center of Horizontal Mounting Holes: 3.9" (100mm)

	Mounting Hole Diameter: 0.20" (5mm)
