RADIO FUTABA 10CH 10J FOR AIR T-FHSS W/R3008SB 2-STICK 01004371-3

* Não acompanha servos e baterias.

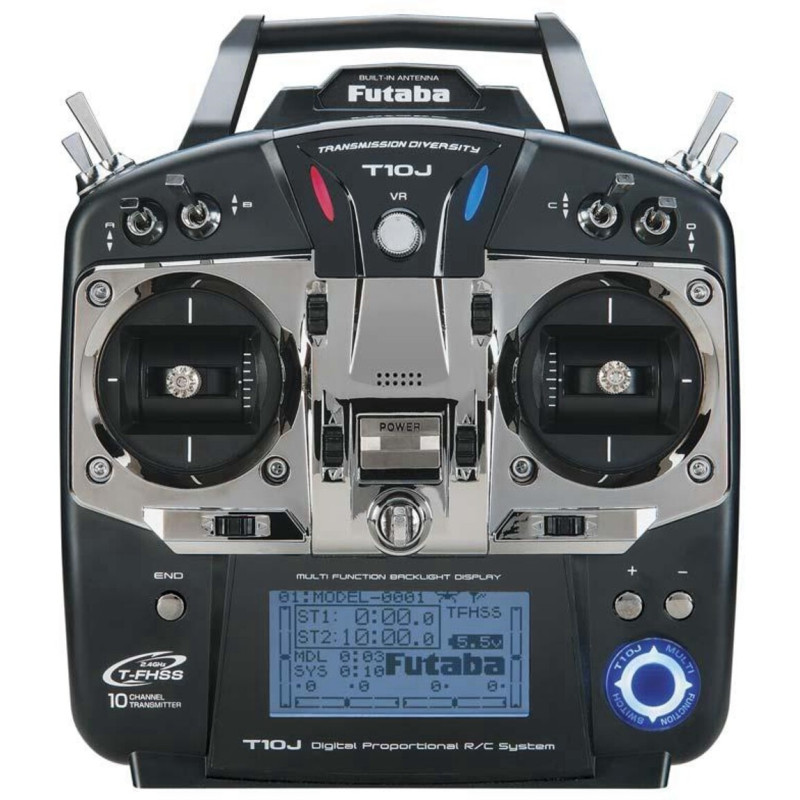

This is the Futaba 10JA 2.4GHz 10-Channel S/FHSS Radio System
with the R3008SB Receiver.

This is the airplane version which will default to airplane settings,
with mode 2 stick operation when powered up and has a ratcheted throttle stick.

Ten channels include one variable knob, five 2-position switches,
two 3-position switches, one momentary switch, two digital levers
Assignable switch/lever/functions (ch. 5-10)
T-FHSS system with telemetry
Airplane, helicopter and glider/sailplane functions in the software
User-updatable software (requires optional CIU-2 interface, FUTM0951
SBus programmable port
Jog dial and three buttons for fast easy programming
Transmitter also compatible with all Futaba SFHSS air receivers
Synthesized voice with telemetry data
Vibration function for use with low battery or warning set ups
Voice output
128x64dot LCD screen with backlight
30 model memory
Throttle cut
Servo cycle with bar graph displays
R3008SB T-FHSS telemetry receiver with external voltage port, S.Bus
and S.Bus2 compatibility, 8 pwm ports
Trainer system
Large 128x64 dot backlit display
One year limited warranty through Hobby Services beginning at date of
purchase

Airplane Menu:
6 programmable mixes
9 factory-defined mixes
Flaperons with differential rate
Flap trim
Differential ailerons
Gyro sensitivity
5-point throttle and pitch curves
Throttle delay
Idle down
Glider Menu:
6 programmable mixes
3 factory defined mixes
5 wing types
Gyro sensitivity
Motor menu
2 flight conditions
Heli Menu:
6 programmable mixes
10 factory defined mixes
8 swash plate types
5 flight conditions w/delay
Throttle curve (4 curves, 5 points)
Pitch curve (5 curves, 5 points)
Throttle hold and delay
Swash AFR
Electronic swash ring
Multi-Rotor Menu
6 programmable mixes
Gyro sensitivity/mixing
Center stick alarm

Futaba 10JA 2.4GHz 10-Channel S/FHSS Transmitter
R3008SB Receiver, FUTL7685
Switch Harness
Neck Strap
Instruction Manual

4 "AA" Alkaline batteries or 4 cell NiMh pack for transmitter
Servos of your choice

Transmitter:
Type: 2-stick, 10 channel, T-FHSS Air-2.4GHz system
Transmitter Frequency: 2.4GHz band
System: T-FHSS Air, S-FHSS, switchable
Power Supply: 6.0V dry battery
R3008SB Receiver;
Type: T-FHSS Air-2.4GHz, dual antenna diversity, S.BUS system
Power Requirement: 4.8-7.4V battery or regulated output from ESC*
Size: 0.98 x 1.86 x 0.56" (24.9 x 4703 x 14.3mm)
Weight: 0.36oz (10.1g)
Battery F/S Voltage: Sets up with transmitter
*When using ESCs make sure the regulated output capacity meets usage
application
