CAMERA DJI ZENMUSE P1

Ref: 364133
Estoque: Indisponível
R$ 53.999,91
Comprar

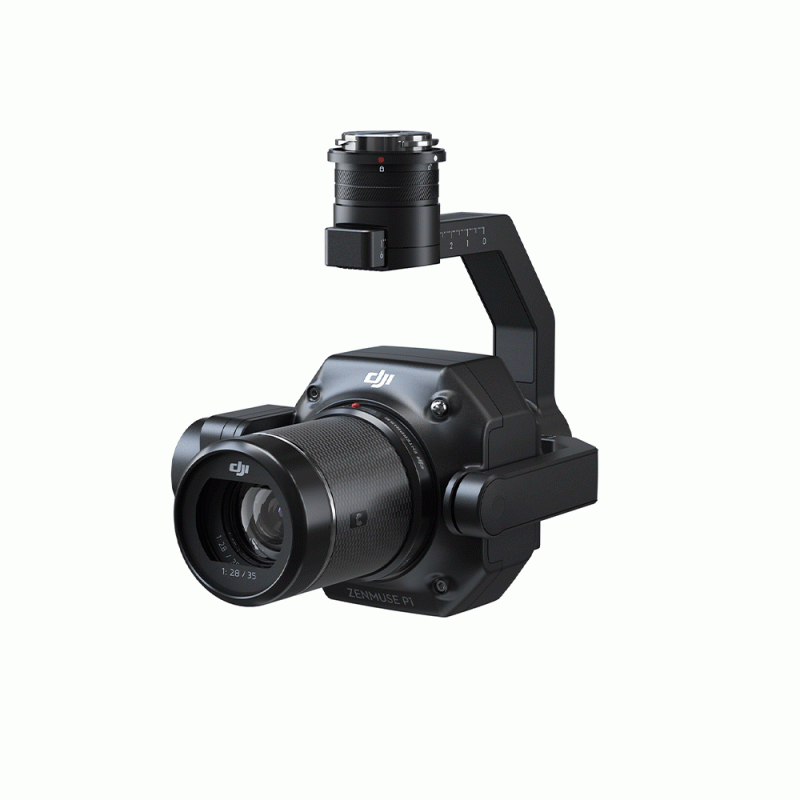

Zenmuse P1

The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.



  • Accuracy without GCPs 3 cm horizontally / 5 cm vertically
  • High Efficiency 3 km2 covered in a single flight
  • 45 MP Full-frame Sensor
  • 3-axis Stabilized Gimbal Smart Oblique Capture
  • Global Mechanical Shutter Shutter Speed 1/2000 Seconds
  • TimeSync 2.0 - synchronization at the microsecond level

In the Box

  • Gimbal and Camera

    Gimbal and Camera

    × 1

  • SD Card （128GB）

    SD Card （128GB）

    × 1

  • Storage Case

    Storage Case

    × 1

  • Camera Body Cap

    Camera Body Cap

    × 1

  • Lens Rear Cap

    Lens Rear Cap

    × 1

  • Lens Cleaning Cloth

    Lens Cleaning Cloth

    × 1

  • Lens Cap

    Lens Cap

    × 1

  • DJI DL 35mm Lens

    DJI DL 35mm Lens

    × 1

  • DJI Terra Activation Code

    DJI Terra Activation Code

    × 1


Your Go-to Tool for Aerial Photogrammetry


Extraordinary Efficiency

The P1 includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight, and covering 3 km2 in a single flight.




Remarkable Accuracy

Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level, the Zenmuse P1 lets users capture centimeter-accurate data combined with the real-time position and orientation compensation technology.



Robust Versatility

Create 2D, 3D, and detailed models thanks to the integrated 3-axis gimbal that can be outfitted with 24/35/50mm lenses and the Smart Oblique Capture feature.




Efficiency to Cover It All

Full-frame Camera

  • 45MP Full-frame Sensor
  • 4.4µm Pixel Size
  • Low-noise, high sensitivity imaging extends daily operational time
  • Take a photo every 0.7 s during the flight
  • TimeSync 2.0 aligns the camera, flight controller, RTK module, and gimbal at the microsecond level


Flexibility to Capture it

All Multiple Fixed-focus Lens Options

  • Global Mechanical Shutter, Shutter Speed 1/2000 Seconds
  • Sends the median exposure pulse in microseconds
  • Supports 24/35/50mm lenses with DJI DL mounts

Smart Oblique Capture

Cover 7.5 km2 in a single workday with the P1. Elevate the efficiency of your oblique photography mission using Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed. Only photos essential to the reconstruction will be taken at the edge of the flight area, increasing the efficiency of post processing by 20% to 50%.


Smart Data Management
Your mission data management - streamlined.

  • Mission result files are automatically associated with the Mission Name and Mission Time.
  • A centralized storage location for photos, GNSS data, and TimeStamps.MRK files.
  • The image metadata contains the camera’s intrinsic and extrinsic parameters and the status of RTK.


Fieldwork Report

Verify data quality immediately post-flight by checking the position data and number of the images acquired, as well as RTK status and positioning accuracy.


Application Scenarios

  • Topographic Mapping: Capture data that meet the 1:500 scale accuracy requirements without GCPs.
  • Cadastral Surveying: Quickly generate centimeter-level accurate 3D reality models.
  • AEC and Surveying: Manage the full project lifecycle with 2D and 3D drone data.
  • Natural Resource Management: Measure, classify, or determine the ownership of water bodies and forests.
  • Geological Investigation: Safely gather millimeter-level accurate aerial data of geological hazard sites.
  • Disaster Site Modeling: Gain real-time overviews of vast disaster-struck areas to help teams make critical decisions.
