ACR/ARTEX ELT 8204 ARTEX ELT1000 >250 KNOTS

Product Description

The ARTEX ELT 1000 is a value-priced upgrade to standard 121.5 MHz transmitters, which are no longer monitored by the Cospas-Sarsat system. The 406 MHz transmitter produces a much more accurate position, typically 3 kilometers as compared with 15 to 20 kilometers for 121.5 MHz transmitters. When coupled to the aircraft navigation system via a navigation interface, the ELT 1000's accuracy improves to approximately 100 meters.

Because it is a single output ELT, the ELT 1000 utilizes the same RF output and only one coax cable to transmit a 406 MHz emergency signal to Cospas-Sarsat satellites and a local 121.5 homing signal. With its new built-in navigational interface that does not require plane power to operate, the cost of installation is greatly reduced.

The new 2-wire interface is compatible with older 121.5 MHz ELTs, so upgrading your ELT is simple and affordable.

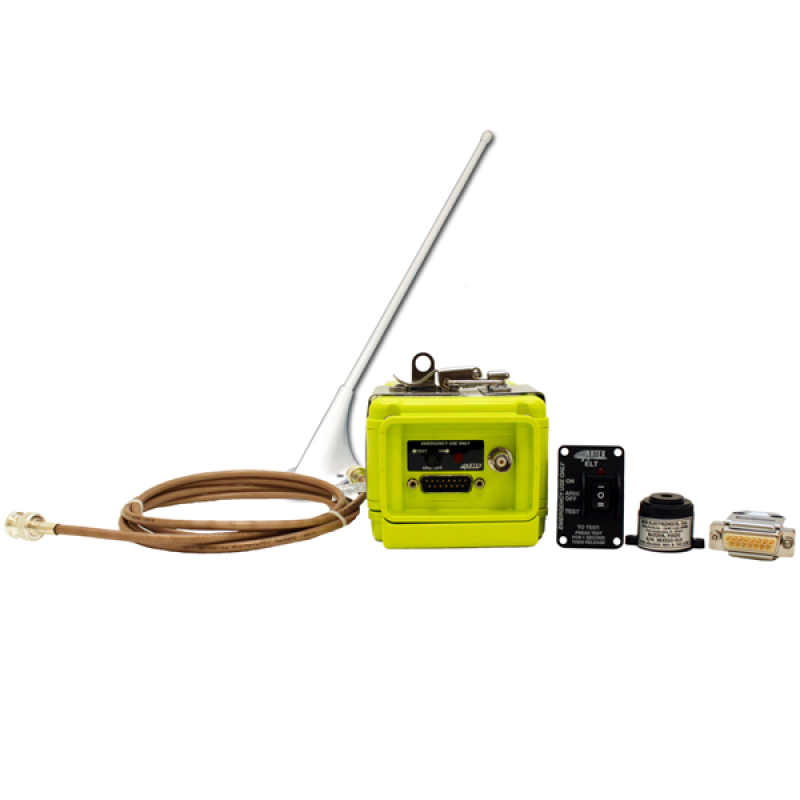

What's Included



• A1-18-2294 CLEAR PLASTIC CAP UNIT & TRAY
• A3-06-2749-1 FINAL ASSEMBLY ELT 1000 ACRTREUSE
• A3-06-2758-1 MOUNT TRAY ASSEMBLY
• 110-338 ANTENNA, ROD (WHITE)
• 452-6505 EXTERNAL BUZZER
• A3-06-2759 COCKPIT REMOTE, TEST, LABEL, PCK
• 455-7423 PAC INSTALL KIT
• Y1-06-0313 ELT INSTRUCTION SHEET
• 611-6013-04 CABLE BOAX BNC TO BNC 6 FT

Model	ELT 1000
Product Number	8204
Operating Frequencies	406 MHz, 121.5 MHz +/- 5 KHz, GPS Interface
Output Power	406 MHz: 5 W (440 ms/ 50 sec) for 24 hours @ -20°C to +55°C, 121.5 MHz: 100 mW minimum for 50 hours @ -20°C to +55°C
Output Connector	BNC Female (406 MHz; 121.5 MHz)
GPS	Built-in GPS Navigational Interface
Activation	Automatic via G-Switch by 4.5 ft/sec (2.3 G) or Manual Activation
Battery	6 year Lithium (LiMnO2), Replacement Battery Part No. 8302
Temperature Certified to:	Operating: -20°C to +55°C, Storage: -55°C to +85°C
Self Test Checks	G-Switch Enabled, 406 MHz and 121.5 MHz Power, NAV system, Low Battery
Remote Control	ON/ARM/TEST
Weight (with tray)	2.2 lbs (996 g)
Measurements	ELT Transmitter with mounting hardware installed: 6.6 x 2.9 x 3.7” (167 x 73 x 94 mm)
Approvals	Cospas-Sarsat, FAA TSO, Industry Canada
Antenna	Rod Antenna (P/N:110-338)
Mounting Tray and Strap	P/N: 8323 (Universal mounting hole pattern fits 90% of existing ELT hole configurations)
