MOTOR OS 95AX COM ESCAP 19120

The power of a 95 — in the same size bolt pattern as the 75AX!

Introducing the 95AX Ringed from O.S. It’s the latest addition to the popular series that's famous for providing uncompromising power in tight-fitting applications – great for aerobats and large-scale models!

A high-performance engine that's ideal for aerobats and large-scale models

Generous thread on the extra-long, balanced crankshaft means more secure prop attachment

The included E-4040 Power Box muffler dampens noise while boosting power

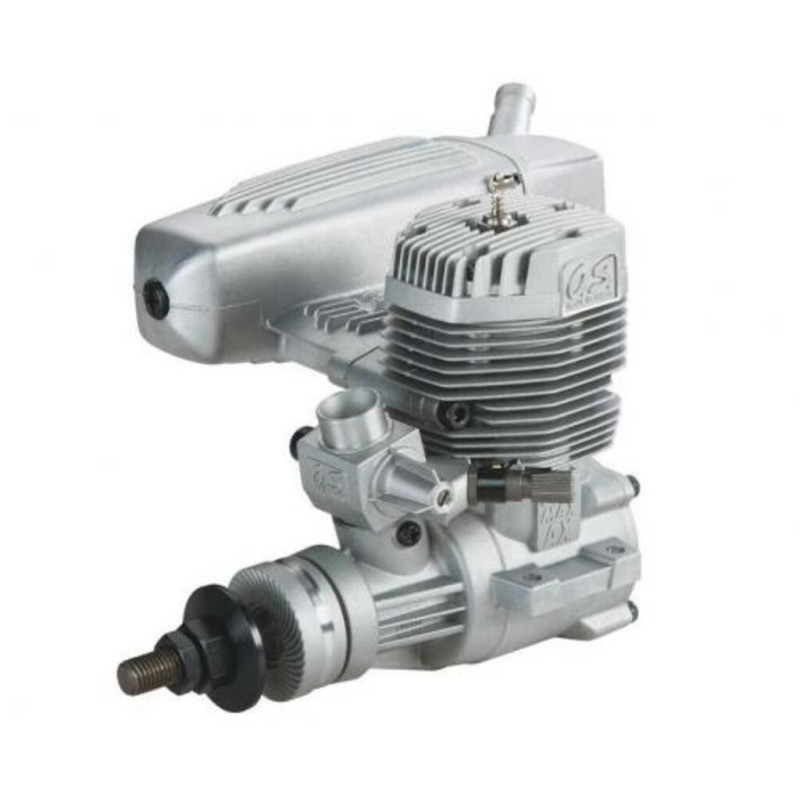

This is the O.S. Max 95 AX ABL Aircraft Engine with Muffler.

FEATURES

Same mounting dimensions as the O.S. Max .75FX

Power Box muffler design provides more volume for increased power in a very compact shape

Angular head design offers increased surface area for better cooling

Ball bearing-supported crankshaft 61C carburetor with diagonally placed needle valve eliminating remote needle valve placement

Two year limited warranty

INCLUDES

O.S. Max 95 AX ABL Aircraft Engine with E4040 muffler, carburetor, #8 glow plug, needle valve extension illustrated instruction manual

REQUIREMENTS

Aircraft blend fuel containing 5%-20% Nitromethane with at least 18% lubricant

Propeller: 14x8, 15x6-8, 16x6-8

Glow starter and field equipment

SPECIFICATIONS

Displacement: 0.949 cu in (15.55cc)

Bore: 1.091" (27.7mm)

Stroke: 1.016" (25.8mm)

Practical RPM: 2,000-16,000 RPM

Power Output: 2.9 PS, 2.86 HP/15,000 RPM

Weight: Engine, 20oz (567g) Muffler, 6.28oz (178g)

Recommended Props: 14x8, 15x6-8, 16x6-8

Crankshaft thread size: 5/16-24

Distance from center of engine to drive hub: 2.6" (66.6mm)

Height from crankcase bottom to top of cylinder head: 4" (102mm)

Height/crankshaft center to top of cylinder head: 3.2" (81.3mm)

Width including mounting tabs: 2.4" (61mm)

Width below mounting tabs: 1.7" (42.6mm)

Width between mounting holes same side: 0.98" (25mm)

Width between mounting holes opposite side: 2" (52mm)

Diameter of muffler body: 1.8" (45mm)

Distance from Center of Engine to Exhaust Outlet: 4.4" (112mm)

Angle of muffler in relation to engine: 4°

High Speed Needle: 1.5 - 2 turns out from fully closed

Low Speed Needle: 2mm gap between the needle and spray bar at full throttle (looking down the neck of the carb)
