MOTOR OS FS-155-A C/BOMBA 4TEMP 35430

Ref: 69373
Estoque: Indisponível
R$ 4.116,75
Comprar

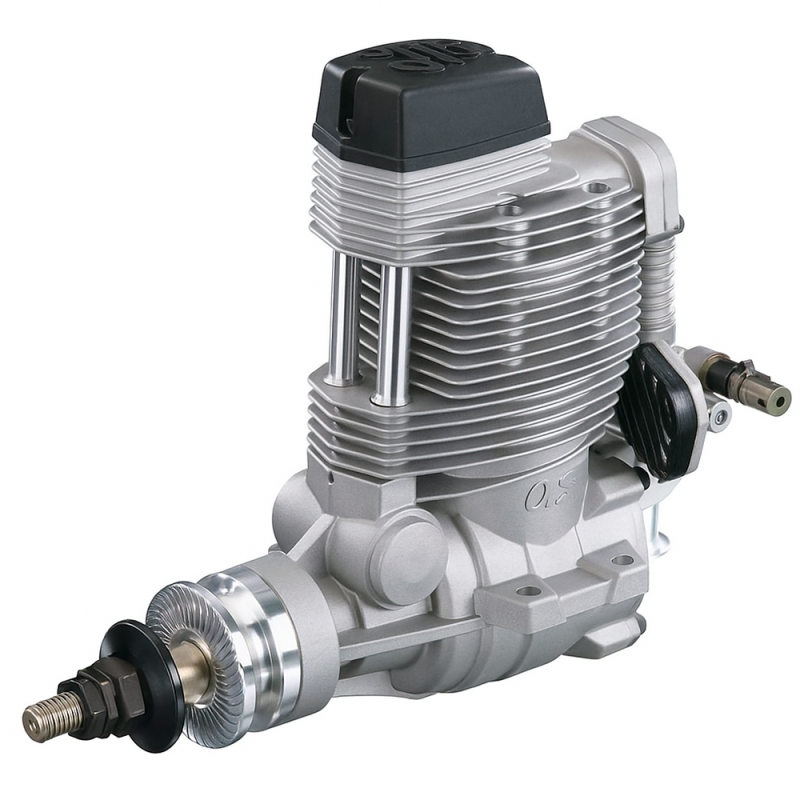

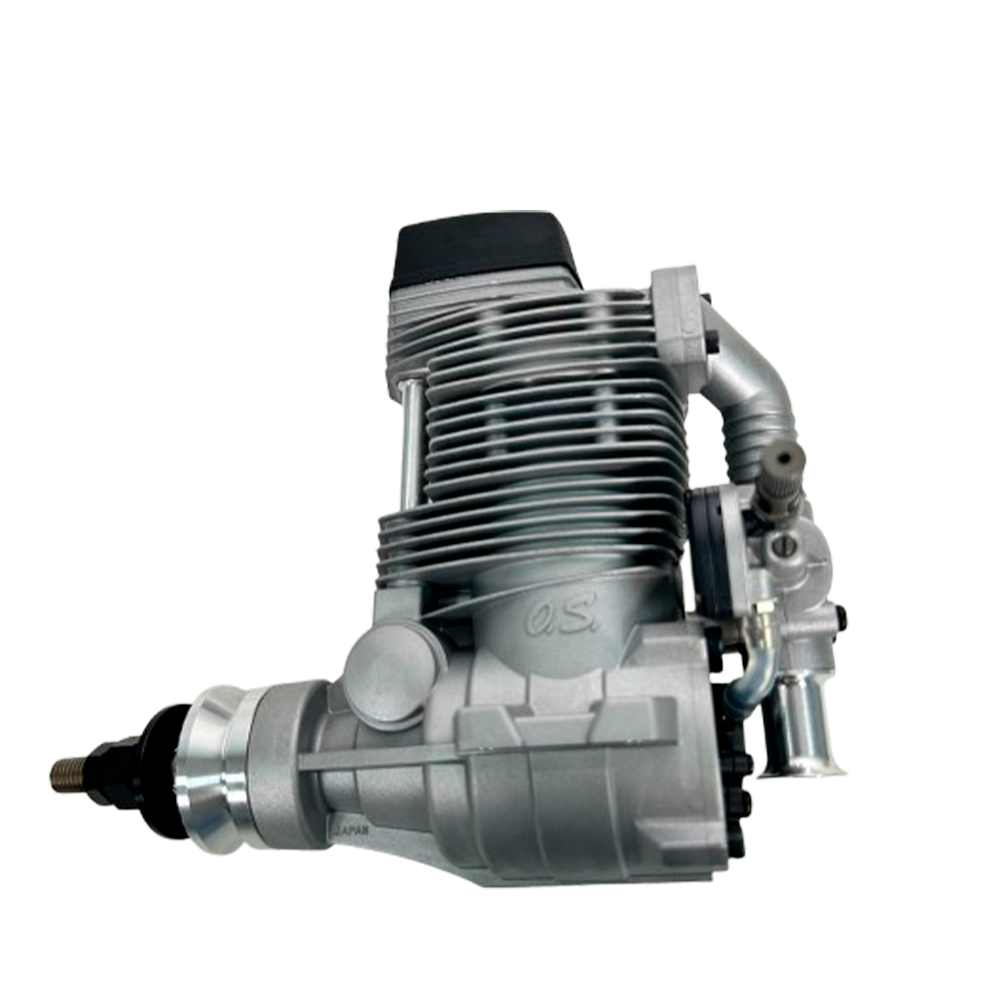

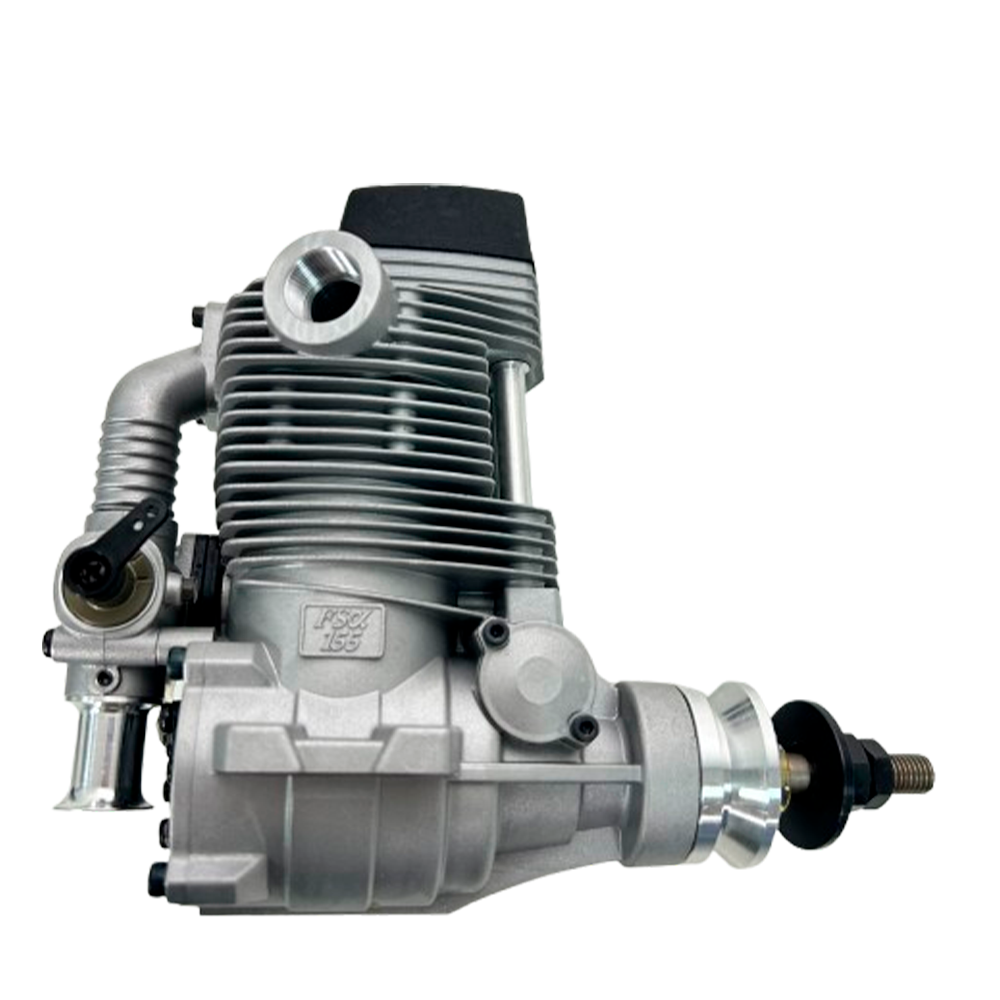

This is the FS155-a P Four Cycle Engine with Pump System from O.S. Engines.

Includes:
  • FS155-a P Four Cycle Engine with PD-08 Pump System
  • 70R Carburetor
  • F-6020 Muffler, Header Pipe, type F Glow Plug, Needle Valve
  • Extension Cable
  • Instruction Manual
Requires:
  • Fuel: Glow fuel with 5-20% nitro content and no less than 18%
  • lubricant content
  • Propeller: 16x8-12 or 17x8-12
  • Glow Starter
  • Field equipment
Specifications:
  • Displacement: 1.548 cu in (25.36cc)
  • Bore: 1.323" (33.6mm)
  • Stroke: 1.126" (28.6mm)
  • Practical RPM: 2,000 - 10,000 RPM
  • Power Output: 2.6 PS, 2.56 HP @ 10,000 RPM
  • Engine Weight: 28.40 oz (805g)
  • Muffler Weight: 3.35oz (95g)
  • Carburetor Settings-
  • Needle Valve: 2-1/2 - 3 turns from fully closed
  • Mixture Control Valve: Factory set, make only small adjustments if
    needed, after adjusting needle valve as described in manual, turn30° to lean idle mixture or 90° counterclockwise to richen mixture
    then back again 45° clockwis.
  • Width at Mounting Tabs: 2.6" 67mm)
  • Crankcase Width below Mounting Tabs: 1.8" (47mm)
  • Length from Drive Washer to rear of Carburetor: 5" (127.5mm)
  • Height from Mounting Tab to Pushrod Cover: 4.5" (114mm)
  • Height from bottom of Crankcase to Pushrod Cover: 5.4" (138.6mm)
  • Distance between Mounting Hole Centers Same Side: 0.98" (25mm)
  • Distance between Mounting Hole Centers Opposite Side: 2.3" (58mm)
  • Distance/front Mounting Hole Center to Drive Washer: 2.5" (64.5mm)
  • Distance/ Center of Engine to Drive Washer: 3.03" (77mm)
  • Crankshaft Size: 5/16-24
